Observability

Debugging is essential to any application development, and Workflows provide you a number of ways to do that.

Visualization

The simplest form of debugging is visualization, which we’ve already used extensively in this tutorial. You can visualize your workflow at any time by running the following code:

from llama_index.utils.workflow import draw_all_possible_flows

draw_all_possible_flows(MyWorkflow, filename="some_filename.html")

This will output an interactive visualization of your flow to some_filename.html that you can view in any browser.

Verbose mode

When running any workflow you can always pass verbose=True. This will output the name of each step as it’s executed, and whether and which type of event it returns. Using the ConcurrentWorkflow from the previous stage of this tutorial:

class ConcurrentFlow(Workflow):
    @step
    async def start(
        self, ctx: Context, ev: StartEvent
    ) -> StepAEvent | StepBEvent | StepCEvent:
        ctx.send_event(StepAEvent(query="Query 1"))
        ctx.send_event(StepBEvent(query="Query 2"))
        ctx.send_event(StepCEvent(query="Query 3"))

    @step
    async def step_a(self, ctx: Context, ev: StepAEvent) -> StepACompleteEvent:
        print("Doing something A-ish")
        return StepACompleteEvent(result=ev.query)

    @step
    async def step_b(self, ctx: Context, ev: StepBEvent) -> StepBCompleteEvent:
        print("Doing something B-ish")
        return StepBCompleteEvent(result=ev.query)

    @step
    async def step_c(self, ctx: Context, ev: StepCEvent) -> StepCCompleteEvent:
        print("Doing something C-ish")
        return StepCCompleteEvent(result=ev.query)

    @step
    async def step_three(
        self,
        ctx: Context,
        ev: StepACompleteEvent | StepBCompleteEvent | StepCCompleteEvent,
    ) -> StopEvent:
        print("Received event ", ev.result)

        # wait until we receive 3 events
        if (
            ctx.collect_events(
                ev,
                [StepCCompleteEvent, StepACompleteEvent, StepBCompleteEvent],
            )
            is None
        ):
            return None

        # do something with all 3 results together
        return StopEvent(result="Done")

You can run the workflow with verbose mode like this:

w = ConcurrentFlow(timeout=10, verbose=True)
result = await w.run()

And you’ll see output like this:

Running step start
Step start produced no event
Running step step_a
Doing something A-ish
Step step_a produced event StepACompleteEvent
Running step step_b
Doing something B-ish
Step step_b produced event StepBCompleteEvent
Running step step_c
Doing something C-ish
Step step_c produced event StepCCompleteEvent
Running step step_three
Received event  Query 1
Step step_three produced no event
Running step step_three
Received event  Query 2
Step step_three produced no event
Running step step_three
Received event  Query 3
Step step_three produced event StopEvent

Stepwise execution

In a notebook environment it can be helpful to run a workflow step by step. You can do this by calling run_step on the handler object:

w = ConcurrentFlow(timeout=10, verbose=True)
handler = w.run(stepwise=True)

# Each time we call `run_step`, the workflow will advance and return all the events
# that were produced in the last step. This events need to be manually propagated
# for the workflow to keep going (we assign them to `produced_events` with the := operator).
while produced_events := await handler.run_step():
    # If we're here, it means there's at least an event we need to propagate,
    # let's do it with `send_event`
    for ev in produced_events:
        handler.ctx.send_event(ev)

# If we're here, it means the workflow execution completed, and
# we can now access the final result.
result = await handler

You can call run_step multiple times to step through the workflow one step at a time.

Visualizing most recent execution

If you’re running a workflow step by step, or you have just executed a workflow with branching, you can get the visualizer to draw only exactly which steps just executed using draw_most_recent_execution:

from llama_index.utils.workflow import draw_most_recent_execution

draw_most_recent_execution(w, filename="last_execution.html")

Note that instead of passing the class name you are passing the instance of the workflow, w.

Checkpointing

Full workflow executions may end up taking a lot of time, and its often the case that only a few steps at a time need to be debugged and observed. To help with speed up Workflow development cycles, the WorkflowCheckpointer object wraps a Workflow and creates and stores Checkpoint’s upon every step completion of a run. These checkpoints can be viewed, inspected and chosen as the starting point for future run’s.

from llama_index.core.workflow.checkpointer import WorkflowCheckpointer

w = ConcurrentFlow()
w_ckptr = WorkflowCheckpointer(workflow=w)

# run the workflow via w_ckptr to get checkpoints
handler = w_cptr.run()
await handler

# view checkpoints of the last run
w_ckptr.checkpoints[handler.run_id]

# run from a previous ckpt
ckpt = w_ckptr.checkpoints[handler.run_id][0]
handler = w_ckptr.run_from(checkpoint=ckpt)
await handler

Third party tools

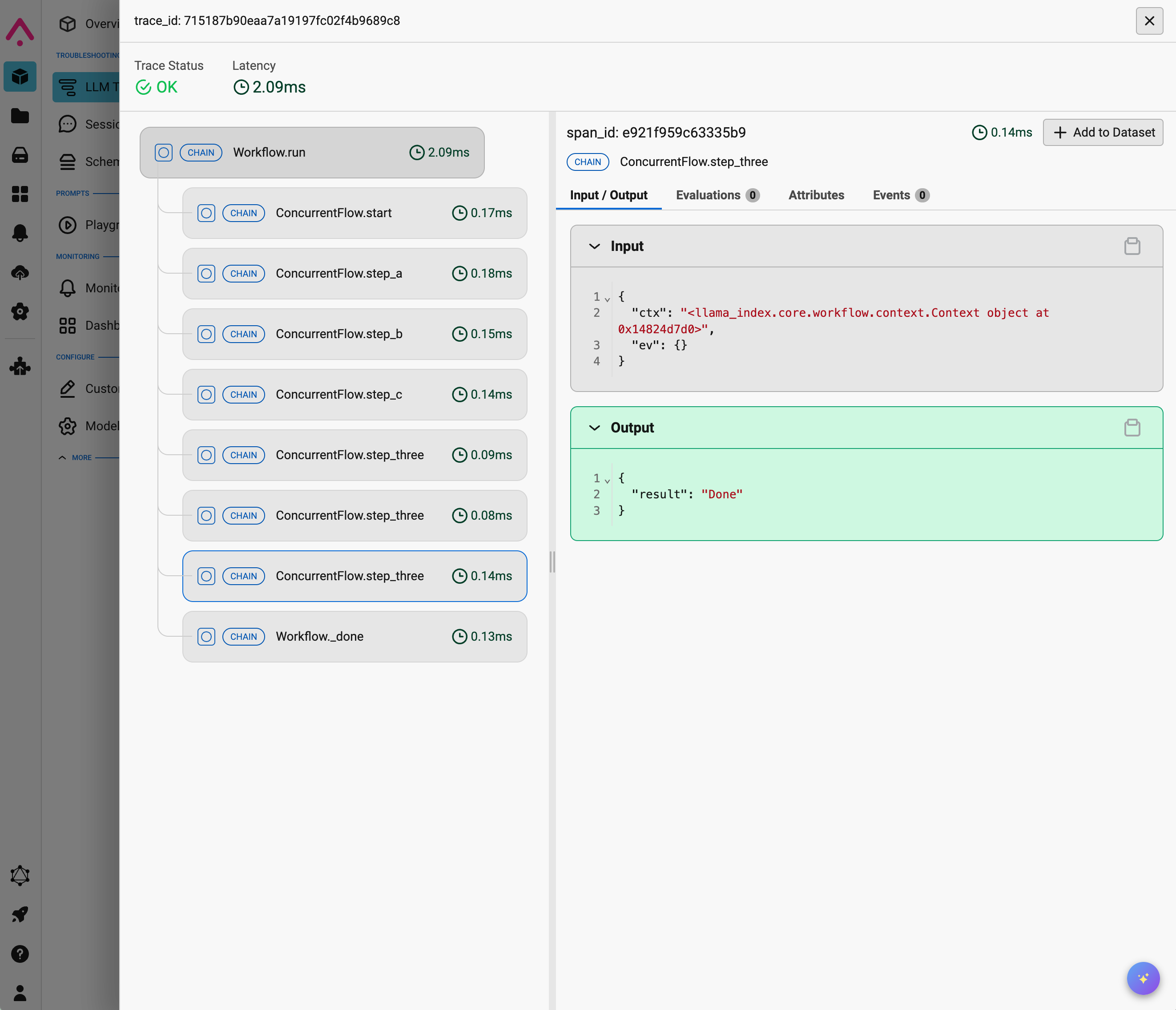

You can also use any of the third-party tools for visualizing and debugging that we support, such as Arize.
