Drawing a Workflow

Workflows can be visualized from the same type annotations the runtime uses for validation. That makes diagrams useful in two different moments: before a run, to see every possible path, and after a run, to see what actually happened.

There are two main ways to visualize a workflow.

Generate diagram files

First install:

pip install llama-index-utils-workflow

Then import and use:

from llama_index.utils.workflow import (
    draw_all_possible_flows,
    draw_all_possible_flows_mermaid,
    draw_most_recent_execution,
    draw_most_recent_execution_mermaid,
)

# Draw every statically possible path as HTML
draw_all_possible_flows(MyWorkflow, filename="all_paths.html")

# Draw the same static graph as Mermaid
mermaid = draw_all_possible_flows_mermaid(MyWorkflow)

# Draw one completed execution as HTML
w = MyWorkflow()
handler = w.run(topic="Pirates")
await handler
draw_most_recent_execution(handler, filename="most_recent.html")

# Draw the same completed execution as Mermaid
execution_mermaid = draw_most_recent_execution_mermaid(handler)

draw_all_possible_flows accepts either a workflow class or a workflow instance. The execution functions take a WorkflowHandler, so you need to run the workflow first.

Long event names can make diagrams hard to read. Pass max_label_length=... to truncate node labels:

draw_all_possible_flows(MyWorkflow, filename="all_paths.html", max_label_length=24)

By default, static diagrams include child workflows. Pass include_child_workflows=False if you want only the parent workflow graph.

Use the debugger UI

The WorkflowServer serves a debugger UI at /. Use it when you want to run a workflow, inspect events, and send human-in-the-loop responses from a browser.

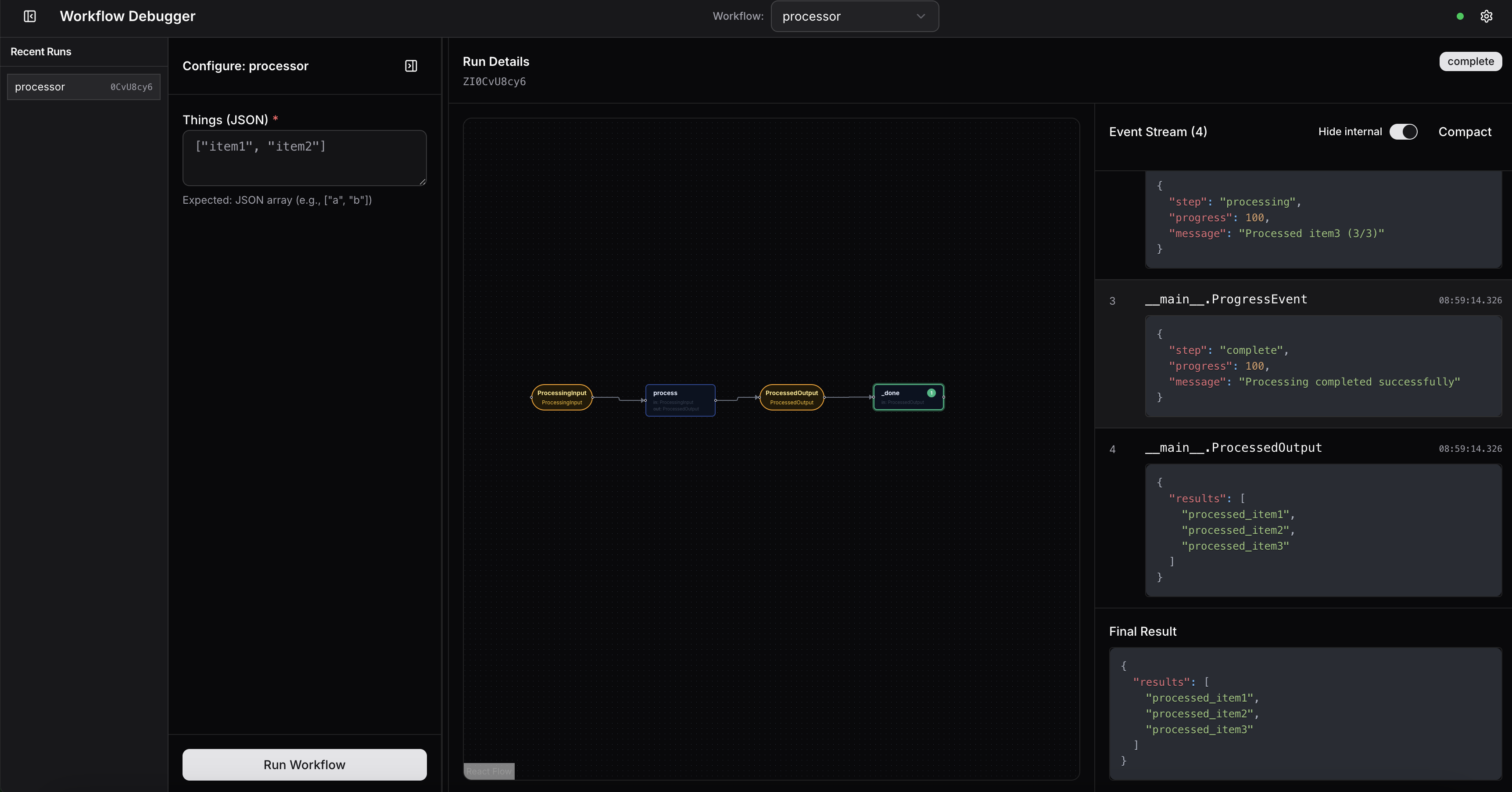

Using this server app, you can visualize and run your workflows:

Setting up the server is straightforward:

import asyncio
from workflows import Workflow, step
from workflows.events import StartEvent, StopEvent
from llama_agents.server import WorkflowServer


class MyWorkflow(Workflow):
    @step
    async def my_step(self, ev: StartEvent) -> StopEvent:
        return StopEvent(result="Done!")


async def main():
    server = WorkflowServer()
    server.add_workflow("my_workflow", MyWorkflow())
    await server.serve("0.0.0.0", 8080)

if __name__ == "__main__":
    asyncio.run(main())
